Payload Struct Spec

Corresponding Source file: Angstrom.sol

Overview

The Angstrom contract is the core entry point for nodes submitting bundles of orders. The contract is in charge of:

• validating orders (signatures, nonces, limits)
• settling orders
• enforcing key protocol invariants
  • uniform clearing (all orders for the same pair get the same price)
  • only active nodes are allowed to submit bundles
  • there may only be 1 bundle / block
• interacting with Uniswap V4
  • swapping against Angstrom pools
  • transferring tokens between Uniswap and itself
  • flash borrowing from Uniswap to ensure orders can be filled

Note that the protocol only enforces some protocol invariants and leaves others to the economic security of the nodes to save on gas e.g. checking that prices are consistent across alternative pairs.

The main entry point for submitting a bundle to the Angstrom contract is the execute(bytes) method which takes the encoded bundle.

Bundle specification & execute(bytes)

Entry-point Control Flow

When execute is called all it does is authenticate that the caller is a node before calling into Uniswap's unlock function which in turn calls back into the Angstrom contract passing it the original payload as data (this back and forth is required because it establishes a call context from which we're allowed to actually interact with Uniswap at all).

Shared Structs & Types

Signature

enum Signature {
    Contract {
        from: address,
        signature: List<bytes1>
    },
    Ecdsa {
        v: uint8,
        r: bytes32,
        s: bytes32
    }
}

The Signature enum represents either an EOA ECDSA signature or a smart contract signature. Ecdsa signature do not need the signer address specified as the signer can be recovered as part of the signature validation process.

Bundle contents

The bundle is a struct encoded using the PADE format. The string of bytes is the value that the execute method is called with (not that the call itself is still ABI encoded, just the contents of the single bytes parameter itself is PADE).

Top-level Payload Contents (the Bundle struct)

The data payload is the PADE encoding of the following struct:

struct Bundle {
    assets: List<Asset>,
    pairs: List<Pair>,
    pool_updates: List<PoolUpdate>,
    top_of_block_orders: List<TopOfBlockOrder>,
    user_orders: List<UserOrder>,
}

Field	Description
use_store: bool	Whether to use storage or the store for retrieving pool configs.

Asset

Solidity: decoding implementation | reference encoding

struct Asset {
    addr: address,
    save: u128,
    take: u128,
    settle: u128
}

The array of assets specifies what assets are going to be traded or settled in the submitted bundle. The elements must be sorted in ascending order according the value of .addr.

Field	Description
addr: address	Contract address of ERC20 token of the asset.
save: uint128	Amount of the asset to save as the network fee (.addr base unit)
take: uint128	Amount of the asset to take from Uniswap (.addr base unit)
settle: uint128	Final amount to be repayed to Uniswap post-bundle execution. (.addr base unit)

Pair

Solidity: decoding implementation | reference encoding

struct Pair {
    index0: u16,
    index1: u16,
    store_index: u16,
    price_1over0: u256
}

This list of pairs defines the unique uniform clearing prices for the different pairs in the bundle. The elements must be sorted in ascending order according to the tuple (.index0, .index1).

Note that to ensure pair uniqueness .index0 must be less than .index1.

Field	Description
index0: u16	Pair's asset 0 as index into the asset array
index1: u16	Pair's asset 1 as index into the asset array
store_index: u16	The pair's store index, see bundle building
price_1over0: u256	Uniform clearing price of pair in asset 1 over asset 0 base units in Ray e.g. 13.2e27 represents 13.2 base units of 1 for every base unit of 0.

PoolUpdate

TODO: Update solidity link

Solidity: decoding implementation | reference encoding

struct PoolUpdate {
    zero_for_one: bool,
    pair_index: u16,
    swap_in_quantity: u128,
    rewards_update: RewardsUpdate
}

The array of PoolUpdates represents intended changes to the underlying pool. This includes the netted out swap to execute against the underlying Uniswap pool (where Angstrom is its hook) and rewards to be saved & accounted for LPs. The contract does not enforce update uniqueness, it is recommended to net out multiple swaps against the same pool into one to save on gas.

Field	Description
zero_for_one: bool	Whether the swap is asset0 => asset1 (zero_for_one = true) or the other way.
pair_index: u16	Index of the pair in the pair's list to retrieve the pool information from.
swap_in_quantity: u128	The swap input quantity in the input asset's base units.
rewards_update: RewardsUpdate	The pool's LP rewards to distribute after the pool swap is executed.

Rewards Update

Solidity: decoding implementation (_decodeAndReward) | reference encoding.

enum RewardsUpdate {
    MultiTick {
        start_tick: i24,
        start_liquidity: u128,
        quantities: List<u128>,
        reward_checksum: u160
    },
    CurrentOnly {
        amount: u128,
        expected_liquidity: u128
    }
}

The rewards update data informs the Angstrom contract where to begin the reward update loop and what quantities to donate. The ::CurrentOnly variant donates the specified amount to the current tick (post-swap), the rest of this section describes the MultiTick variant. Which is required whenever 1 or more ticks are being rewarded, or a single tick that is not the current tick. The start_liquidity value informs the contract what the total liquidity is at the start as this cannot be efficiently querried. Note that the value is eventually checked however and is computed as the loop progresses to ensure consistency of reward distribution.

Field	Description
start_tick: i24	When below = true the current tick: the first tick above the first tick to donate to. When rewarding above: just the first tick actually being donated to.
start_liquidity: u128	The current liquidity if the first tick to donate to were the current tick.
quantities: List<u128>	The reward for each initialized tick range including the current tick in
asset0 base units.

Reward Update Internalsß

To gain a better intuition over how parameters need to be set it's good to understand how the reward update loop operates. The main purpose of the loop is to update the internal reward_growth_outside value of the ticks it passes. The "growth outside" values represent cumulative rewards in such a way where the total rewards accrued by a liquidity range can be efficiently computed later.

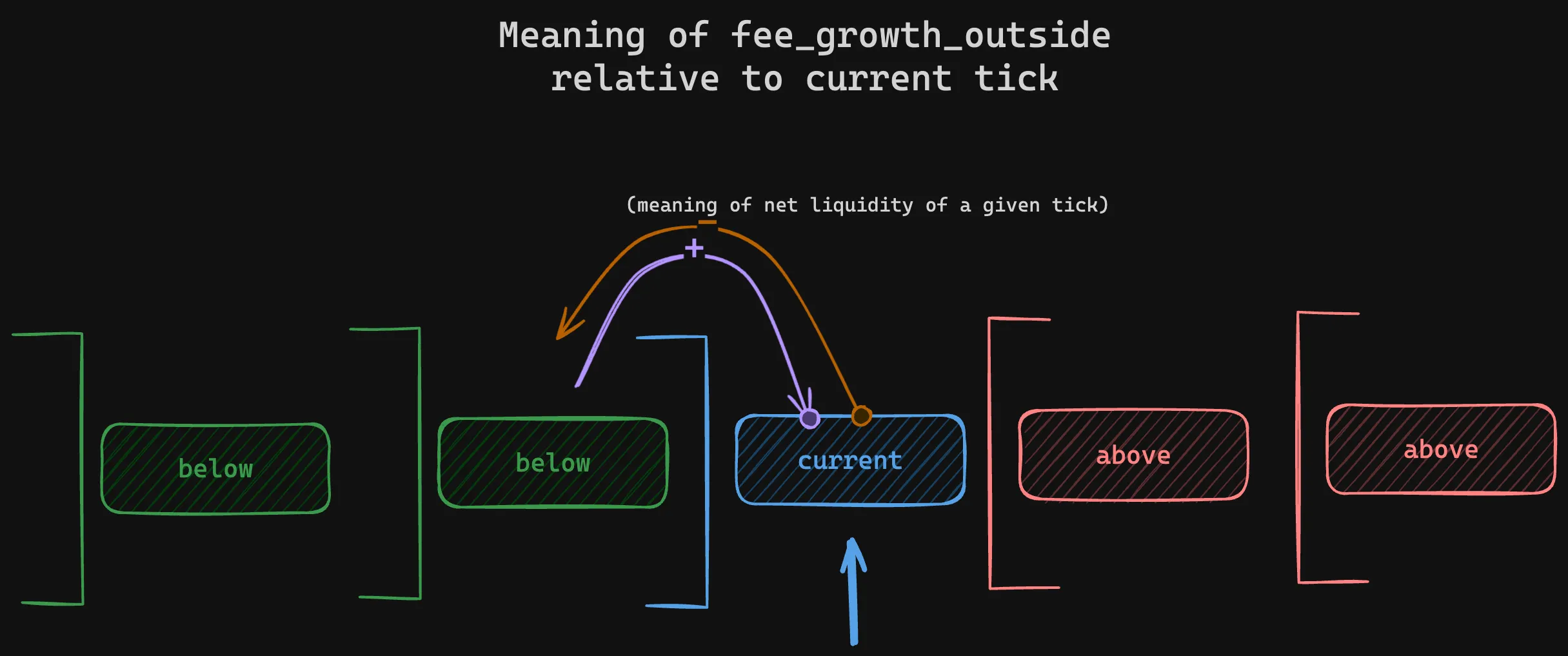

To understand why rewarding above and below the current tick requires different starting values we need to understand how the meaning of a tick's reward_growth_outside value changes relative to the current tick:

For ticks that are below or at the current tick their reward_growth_outside value represents the sum of all accrued rewards in the ticks below excluding the tick's own rewards.

Conversely for ticks that are above the current tick their reward_growth_outside value represents the sum of all accrued rewards in the ticks above including its own.

Generally the logic for updating pool rewards looks as follows:

def update_rewards(
    pool: Pool,
    start_tick: Tick,
    quantities: list[int],
    liquidity: int,
    expected_checksum: int,
    below: bool
):
    cumulative_reward_growth: float = 0

    end_tick: Tick = get_current_tick()
    ticks: list[Tick] = initialized_tick_range(start_tick, end_tick, include_end=below)
    reward_checksum: bytes32 = b'\x00' * 32

    for tick, quantity in zip(ticks, quantities):
        cumulative_reward_growth += quantity / liquidity
        tick.reward_growth_outside += cumulative_reward_growth

        if below:
            liquidity += tick.net_liquidity
        else:
            liquidity -= tick.net_liquidity

        reward_checksum = keccak256(abi_encode_packed(
            (reward_checksum, 'bytes32'),
            (liquidity, 'uint128'),
            (tick, 'int24')
        ))

    assert len(quantities) == len(ticks) + 1, 'Unused quantities'
    checksum_bits = int.from_bytes(reward_checksum, 'big') >> (256 - 160)
    assert checksum_bits == expected_checksum, 'Invalid checksum'

    current_tick_reward: int = quantities[len(ticks)]
    cumulative_reward_growth += current_tick_reward / liquidity
    pool.global_reward_growth += sum(quantities)

    assert liquidity == get_current_liquidity(), 'Invalid set start liquidity'

TopOfBlockOrder

Solidity: decoding implementation (_validateAndExecuteToB) | reference encoding.

struct TopOfBlockOrder {
    use_internal: bool,
    quantity_in: u128,
    quantity_out: u128,
    max_gas_asset0: u128,
    gas_used_asset0: u128,
    pairs_index: u16,
    zero_for_one: bool,
    recipient: Option<address>,
    signature: Signature
}

Field	Description
use_internal: bool	Whether to use angstrom internal balance (true) or actual ERC20 balance (false) to settle
quantity_in: u128	The order offered input quanity in the input asset's base units.
quantity_out: u128	The order expected output quantity in the output asset's base units.
max_gas_asset0: u128	The maximum gas the searcher accepts to be charged (in asset0 base units)
gas_used_asset0: u128	The actual gas the searcher ended up getting charged for their order (in asset0 base units)
asset_in_index: u16	Order's input asset as index into the assets array
asset_out_index: u16	Order's output asset as index into the assets array
recipient: Option<address>	Recipient for order output, None implies signer.
signature: Signature	The signature validating the order.

UserOrder

struct UserOrder {
    ref_id: u32,
    use_internal: bool,
    pair_index: u16,
    min_price: u256,
    recipient: Option<address>,
    hook_data: Option<List<bytes1>>,
    zero_for_one: bool,
    standing_validation: Option<StandingValidation>,
    order_quantities: OrderQuantities,
    max_extra_fee_asset0: u128,
    extra_fee_asset0: u128,
    exact_in: bool,
    signature: Signature
}

struct StandingValidation {
    nonce: u64,
    deadline: u40
}

enum OrderQuantities {
    Exact {
        quantity: u128
    },
    Partial {
        min_quantity_in: u128,
        max_quantity_in: u128,
        filled_quantity: u128
    }
}

UserOrder

Field	Description
ref_id: uint32	Opt-in tag for source of order flow. May opt the user into being charged extra fees beyond gas.
use_internal: bool	Whether to use angstrom internal balance (true) or actual ERC20 balance (false) to settle
pair_index: u16	The index into the List<Pair> array that the order is trading in.
min_price: u256	The minimum price in asset out over asset in base units in RAY
recipient: Option<address>	Recipient for order output, None implies signer.
hook_data: Option<List<bytes1>>	Optional hook for composable orders, consisting of the hook address concatenated to the hook extra data.
zero_for_one: bool	Whether the order is swapping in the pair's asset0 and getting out asset1 (true) or the other way around (false)
standing_validation: Option<StandingValidation>	The one-time order validation data. (None implies a flash order which is validated via the block number)
order_quantities: OrderQuantities	Description of the quantities the order trades.
max_extra_fee_asset0: u128	The maximum gas + referral fee the user accepts to be charged (in asset0 base units)
extra_fee_asset0: u128	The actual extra fee the user ended up getting charged for their order (in asset0 base units)
exact_in: bool	For exact orders: whether the specified quantity is the input or output (disregarded for partial orders).
signature: Signature	The signature validating the order.

StandingValidation

Field	Description
nonce: u64	The order's nonce (can only be used once but do not have to be used in order).
deadline: u40	The unix timestamp in seconds (inclusive) after which the order is considered invalid by the contract.
